SYSTEM AND SOLUTIONS DELIFTA

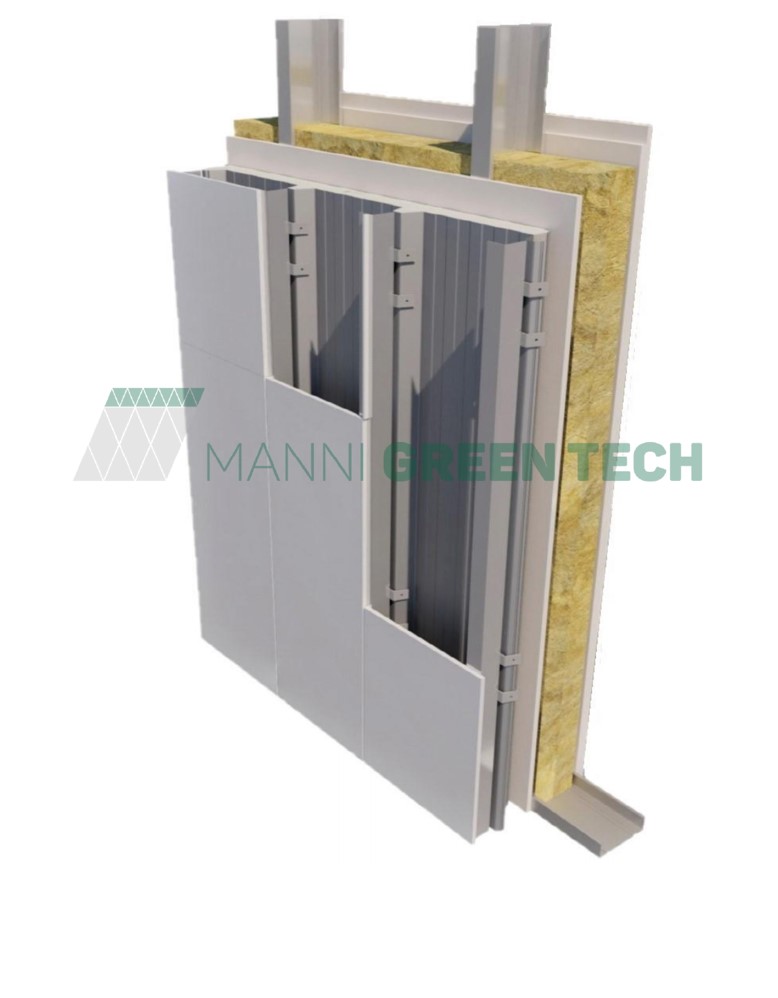

DELIFTA WE 1

LOAD BEARING EXTERNAL ENVELOPE WITH SINGLE FRAME WITH VENTILATED FACADE SYSTEM

The heart of the Manni Green Tech technology consists in a core composed of Manni Green Tech 10X50 / 140/ 50X10mm structural profiles that cement and plasterboard slabs with their own Manni Green Tech certifications are applied to. Insulating materials are inserted in the space in between the structures. Every ADDMIRA version of the new innovative ISOPAN ventilated facade systems can be combined with the Manni Green Tech structural “core”, composed in this manner, increasing the thermal/acoustic performance of the facade in addition to the various architectural design compositions that can be built.

DELIFTA WE 2

LOAD BEARING EXTERNAL ENVELOPE with DOUBLE FRAME with CLADDING

The heart of the Manni Green Tech technology consists in a core composed of Manni Green Tech 10X50 / 140/ 50X10mm structural profiles that cement and plasterboard slabs with their own Manni Green Tech certifications are applied to. Insulating materials are inserted in the space in between the structures. Insulating cladding on the external side will be combined with the Manni Green Tech structural “core”, while a non-load-bearing supporting wall will be installed on the internal side. All with customised finishes and painting, suitable for residential homes.

DELIFTA WE 3

DOUBLE-BEAM LOAD-BEARING OUTER FRAME WITH SANDWICH PANEL CLADDING.

perimeter load-bearing walls with structural MANNI GREEN TECH® light steel frame [ lsf ] metal frame and cladding in coated plasterboard sheets on the inside and reinforced concrete slabs and ISOPAN thermo-acoustic insulation system for finishing with ISOPAN sandwich panels mod. Isofire Wall Plisse' external side.

DELIFTA WE 4

LOAD-BEARING OUTER SHELL WITH DOUBLE FRAMES AND THERMAL BREAK INSULATION LAYER.

Load-bearing perimeter walls with a Manni Green Tech® structural light steel frame [ lsf ] with a metal frame and cladding in coated plasterboard on the inside and reinforced concrete slabs with a layer of thermal-acoustic insulation with thermal break on the outside.

DELIFTA WE-1

LOAD BEARING EXTERNAL ENVELOPE WITH SINGLE FRAME WITH REI 90 SPECIFICATIONS

The heart of the Manni Green Tech technology consists in a core composed of Manni Green Tech 10X50 / 140/ 50X10mm structural profiles that completing DF gypsum coated slabs are applied to. This solution has been tested in laboratory to obtain fire resistance values ​​of 90 min. To receive more information about the certification, fill out the contact form.

DELIFTA WI 1

LOAD BEARING INTERNAL WALL WITH SINGLE FRAME WITH SLAB CLADDING

Thanks to Manni Green Tech technology, the internal walls become structural with Manni Green Tech 10X50 / 140/ 50X10mm profiles. The vertical wall is completed by different types of plasterboard slabs and insulating materials to increase the soundproofing performance.

DELIFTA WI 2

LOAD BEARING INTERNAL WALL WITH TRIPLE FRAME WITH SLAB CLADDING.

Internal load-bearing walls with structural Manni Green Tech® light steel frame [ Lsf ] metal frame and cladding in coated plasterboard sheets.

DELIFTA SL 1

LOAD BEARING INTERNAL FLOOR IN-BETWEEN FLOORS OF DIFFERENT LIVING UNITS

Dividing load bearing floor in-between floors of living units with MANNI GREEN TECH Light Steel Frame structural frame made with press formed or latticed structural profiles. The beams arranged at regular intervals allow the passage of ducting and the installation of plant engineering elements. Insulating material is placed in the gap between the structures, according to the required performance. The internal finish will be built with Manni Green Tech gypsum coated slabs.

DELIFTA SL 1 + DELIFTA CM-1

LOAD BEARING INTERNAL FLOOR IN-BETWEEN FLOORS OF DIFFERENT LIVING UNITS WITH REI SPECIFICATIONS.
Dividing load bearing floor in-between floors of living units with MANNI GREEN TECH Light Steel Frame structural frame made with press formed or latticed structural profiles. The beams arranged at regular intervals allow the passage of ducting and the installation of plant engineering elements. Insulating material is placed in the gap between the structures, according to the required performance. The internal finish will be completed with the DELIFTA false ceiling system complete with DF gypsum coated slabs. This solution has been tested in laboratory to obtain fire resistance values ​​of 120 min. To receive more information about the certification, fill out the contact form.

DELIFTA R 1

FLAT ROOF BEARING FLOOR


It is possible to build flat roofs with Manni Green Tech structural profiles with floor spans from 4 to 8m*. The structural stiffness is provided by the Manni Green Tech profile + LG20 corrugated sheet. Insulating material is placed in the gap between the structures, according to the required performance. The internal finish and external waterproofing layers can be built according to the requested performance.

*To build roofs with greater span, the Manni Green Tech engineering team will assess the best solution in accordance with your needs

DELIFTA R 2

FLAT ROOF LOAD BEARING FLOOR with Green Roof ISOPAN SYSTEM


By combining the two ISOPAN and Manni Green Tech technologies it is possible to build walk-on flat roofs with green roof finish and Manni Green Tech structural profiles. The structures adapt perfectly to the Isopan Green Roof system. Easy and quick assembly are among the main benefits of the construction package, in addition to all of the energy saving advantages and improved performance linked to the green roof.

DELIFTA RP 1

LOAD BEARING FLOOR WITH INCLINED PITCH ROOF

Manni Green Tech structural beams with 60cm or 40cm pitch sitting on the structural walls create the required shape of the inclined pitch. Insulating material is placed in the gap between the structures, according to the required performance. The beams are finished internally with Manni Green Tech gypsum coated slabs and feature customisable plaster finish. Outside, the roof and waterproofing elements can be built by laying tiles, sheets of various kinds or other finishes of your choice.
